BRAYDEN CPR Manikin (Without Lights)

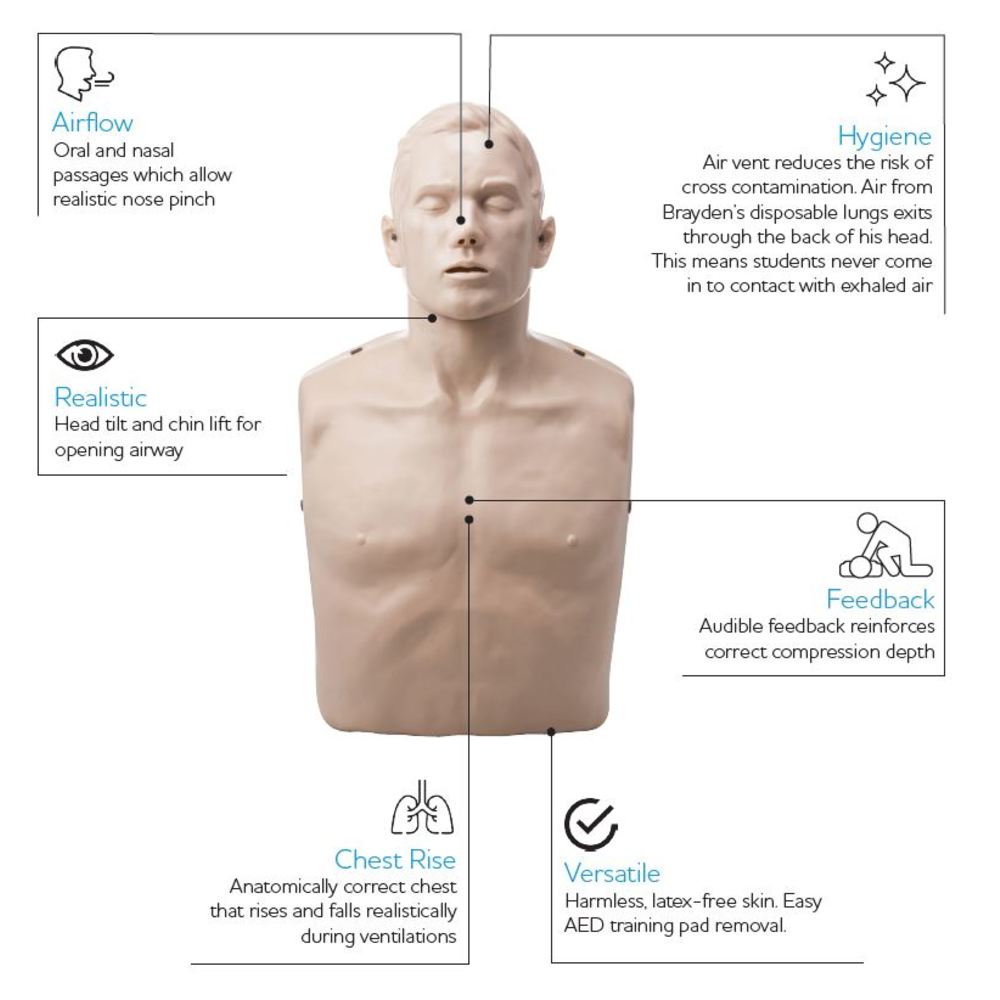

With all the ventilation, airflow, realistic skin and audible clicker features of the IM13-R Brayden CPR Manikin, this manikin has no LED light function.

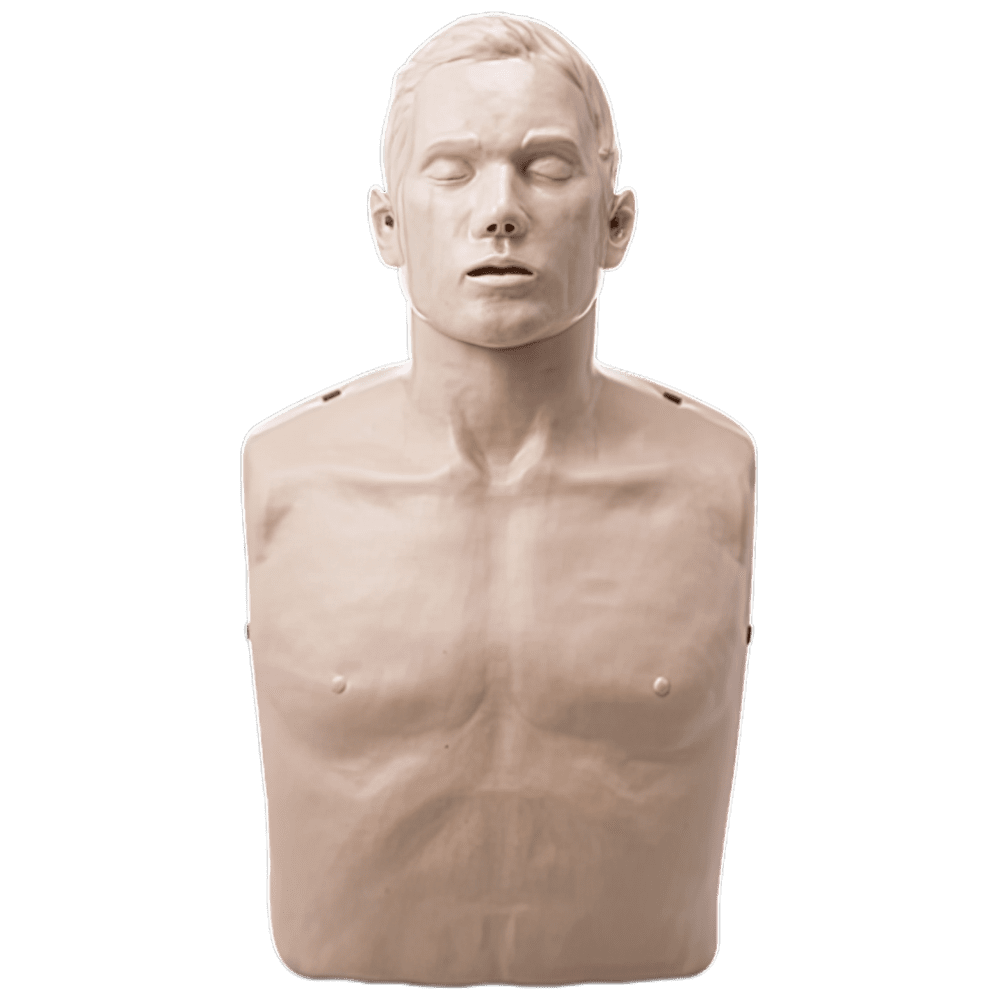

Image of BRAYDEN CPR Manikin (Without Lights)

Package Contents Includes:

  • 10 x Face Masks
  • 1 x Extra Lung
  • 1 x Face Skin
  • 1 x Instructions
  • 1 x Manikin Carry Bag



Also available in the Brayden Pulse and Pro.



For our dedicated Brayden Manikin Site, Click HERE.

Technical Specifications

Model: IM13-R IM16 IM13-S
Type: Torso Torso Torso
Display visual flow of blood

from the heart to the brain:
Yes Yes No
Bluetooth Connectivity / Sensor Data Collection: No Yes No
Chest compression depth

and speed measuring sensor:
Yes Yes No
Chest movement with ventilation: Yes Yes (when unpaired with App) Yes
Head tilt and Chin lift for opening airway: Yes Yes Yes
Airways system: Non-breathing with disposable lungs Non-breathing with disposable lungs Non-breathing with disposable lungs
Ribs, Xiphoid: Yes Yes Yes
Audible feedback: Clicker on/off Clicker on/off Clicker on/offs
Length: 59cm 59cm 59cm
Weight: 6.8lb (including batteries) 7lb (including batteries) 6.6lb
Operating temperature: 59°F to 86°F 32°F to 104°F 59°F to 86°F
Storage temperature: 14°F to 104°F -4°F to 140°F 14°F to 104°F
Humidity: Relative humidity between 5% and 95% Relative humidity between 5% and 95% Relative humidity between 5% and 95%
Warranty: 2 years (excluding consumables) 2 years (excluding consumables) 2 years (excluding consumables)
Power: AC Adapter (Input AC 100 ~ 260V, Output DC 9V 1A)

Battery C type (6 batteries)
AC Adapter (Input AC 100 ~ 260V, Output DC 9V 1A)

Battery C type (6 batteries)
No

Additional information

Weight 4.06 kg
Dimensions 61 × 33.6 × 25.9 cm
Carton Qty

1

Pricing Unit

Unit/1

Size

Adult

Min Order Qty

1

UNSPSC

42301502

Tax Schedule

Taxable

Item Length

59

Item Width

33

Item Height

20

Item Measurement Unit

cm

Is Serialized Item

No

Is Dangerous Good

No

We Can Be Aeros - Resuscitation DRS ABCD
We Can Be Aeros - Resuscitation CPR We Can Be Aeros - What to do if Someone Passes Out
We Can Be Aeros - How to Use a Defibrilator in an Emergency


1 review for BRAYDEN CPR Manikin (Without Lights)

5.0
Based on 1 review
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
1-1 of 1 review
  1. The basic CPR manikin is an ideal entry point for any trainers – great price point and a winning manikin.
    Brayden manikins are built tough and look realistic. My favourite feature is the fact that the entire head tilts backwards, straightening an internal airway – which will also cause the chest to rise and fall if rescue breaths are delivered correctly.
